Silicone Oil Resistance Tc Oil Seal Sizes Skeleton Oil Seal
Silicone Oil Resistance Tc Oil Seal Sizes Skeleton Oil Seal

Product details:
Item name:Oil Seal
Meterial:NBR, FKM, HNBR , Viton,Silicon ,Q, EPDM, ACM, etc
Application:Engine, Transmission, Rear Axle
Speed:Speed Mechanical Seal
lip:Double lips and single lip are available
Shape:O Type
Color:Black, brown or as you required
Pressure:Pressure type
Working Medium: Hydraulic Oil, Water and Dust
Payment terms:L/C or T/T or Western Union
Trademark:ODM, OEM
Performance:High temperature resistance,Good oil resistance
Standard:Nonstandard / Standard
Hardness:20-95
Transport package:Carton or as Your Required
Factory visit:Available
Company TypeManufacturer/Factory & Trading Company
Origin:China(mainland)
Hscode:4016931000
Supply500000 per/month
Brief Introduction
Oil seal is also known as rotary shaft seal. They are often called grease, fluid or dirt seals. An oil seal normally consists of three basic components: The Sealing Element (the nitrile rubber part), the Metal Case, and the Spring. It is a widely used sealing component.
Temperature: -120°C -280°C Depending On Rubber Material
Pressure: Up to 0.03 MPa
Reciprocation Speed: 0-20m/S
Medias: mineral oils, water, lubricating grease
Specification: 6-13000mm
Hardness: 20-95

Rubber materials:Silicone , We have various colors/specifications/shapes for choosing.
Oil seal specifications:
8*16*5.835*45*1060*80*10180*220*1612*20*5.815*30*7
10*18*5.835*47*760*90*12180*220*1835*62*1060*85*10
10*22*838*58*865*80*10200*230*1564*80*815*26*7
10*26*535*50*865*85*8280*320*20221.5*250*815*30*7
 Silicone Regular Size:
ID*OD*HTypeID*OD*HTypeID*OD*HTypeID*OD*HType
6x22x8TC12x32x10TC17x30x8TC20x40x8TC
8x14x4SC12x32x7TC17x30x10TC20x42x7TC
8x16x4TC13x22x7TC17x30x10TC20x42x7TC
8x16x5TC13x24x7SC17x35x10TC20x42x10TC
8x16x7SC14x24x7SC17x35x10SC20x45x10TC
8x19x7TC14x24x8TC17x35x5TC20x45x10TC
8x20x7TC14x25x7TC17x35x7TC20x45x10SC
8x22x7SC14x28x4TC17x35x8TC20x47x7TC
8x22x8SC14x28x7TC17x40x7TC20x47x8TC
8x22x8TC14x28x7TC17x40x10TC20x47x10SC
9x22x7TC14x28x10TC17x40x12TC20x47x10TC
10x19x5TC14x29x7TC18x28x5TC20x50x10TC
10x19x6TC14x30x7TC18x30x6TC20x52x7TC
10x19x7TC14x30x10TC18x30x7TC20x52x3SC
10x20x8TC14x35x7TC18x30x8TC20x52x6SC
10x22x10TC14x35x10SC18x30x10SC21x35x6TC
10x22x10TC15x24x5TC18x30x10TC21x35x7TC
10x22x7SC15x24x7TC18x35x10SC21x35x8TC
10x22x8SC15x25x5TC18x35x10TC21x38x6TC
10x22x8TC15x26x7TC18x35x7TC22x30x10SC
10x25x5SC15x28x5SC18x40x7TC22x32x5SC
10x25x10SC15x28x7TC18x40x10TC22x32x7TC
10x26x4TC15x28x7SC20x30x5SC22x35x6TC
10x26x7TC15x28x10SC20x30x5TC22x35x7TC
10x26x7SC15x30x5SC20x30x6TC22x35x6.7TC
10x26x8TC15x30x5TC20x30x7SC22x35x8TC
10x28x7TC15x30x10TC20x30x7SC22x38x8TC
10x28x10TC15x30x10SC20x30x7TC22x38x10SC
11x19x5TC15x32x7TC20x30x8TC22x38x10TC
12x19x3SC15x35x6TC20x30x9TC22x40x6TC
12x20x6SC15x35x10TC20x30x10SC22x40x7TC
12x22x5TC15x35x7TC20x32x7TC22x40x8TC
12x22x6TC15x40x10SC20x32x7TC22x40x8TC
12x22x7TC16x28x7TC20x35x10TC22x40x9TC
12x22x7SC16x30x7TC20x35x10TC22x40x10SC
12x24x7SC16x30x7.5TC20x35x5TC22x40x10TC
12x24x7TC16x30x10TC20x35x7TC22x42x7TC
12x25x5SC16x35x7TC20x35x7TC22x42x10SC
12x25x7TC16x35x10TC20x35x8SC22x42x11TC
12x25x10TC16x35x10TC20x37x7TC22x42x12SC
12x28x7TC17x28x5SC20x37x7TC22x45x10TC
12x28x8TC17x28x7TC20x40x10TC22x45x10SC
12x28x10TC17x28x7SC20x40x7TC22x50x10TC
12x30x10TC17x30x7TC20x40x7SC22x65x8TC

Related Products:

Silicone Oil Resistance Tc Oil Seal Sizes Skeleton Oil Seal

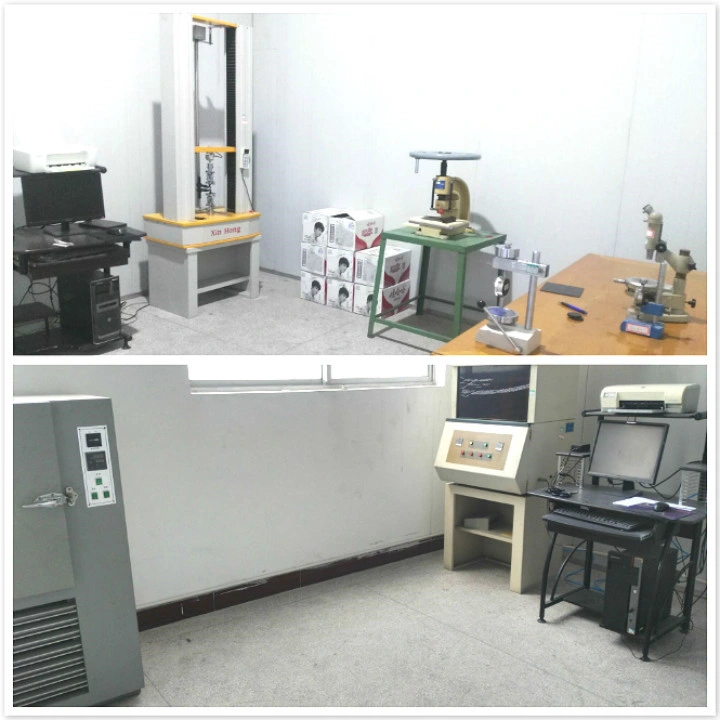

Testing Equipments

1,Hardness testing: hardness testing of various materials to ensure product hardness to meet customer requirements.
2,Tensile machine: according to the material property requirements test tensile force, according to the standard through the test.
3,Microscopic examination: sampling rate of 20%, oil seal surface is fine cracks, there is scrap, no pass; if the sampling failure rate of 3% and above, the whole batch of full inspection, to ensure quality.
4,Aging box: aging of the material, the temperature of 200 degrees and above, aging phenomenon, then scrapped.
5,Vulcanizing apparatus: test the quality of the glue material, the value is within the standard range, and then pass the test according to the standard.


Silicone Oil Resistance Tc Oil Seal Sizes Skeleton Oil Seal

Certification

We have passed ROHS , ISO9001:2008 quality system certification.

Silicone Oil Resistance Tc Oil Seal Sizes Skeleton Oil Seal


Packing&Shipping:
SizeOfficial size
PackingA roll of 10, a bundle of 100, and finally put into the packing box
About the packing details for sizes, also according to your requirements.
Delivery Time: 5-7 days after payment
Payment Terms:100%TT advance payment for LC order
Normally, the goods will be shipping by Sea, by air or by air express according to customer's request.

Our Service
As a professional manufacturer of rubber sealing products for 34 years, we offer various kinds oil seals, such as TC, TB, TA, SC, SB, SA, VC, VB, VA, KC, KB, KA, DC, and DB, also can customized based on your specific demand; Material including NBR, SILICONE, VITON,HNBR, CR, PTFE, EPDM, etc for your better choice.

Silicone Oil Resistance Tc Oil Seal Sizes Skeleton Oil Seal

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally 3-7 days for standard sealing products; and 15-20 days for big order and custom non-standard products.
Q: Do you provide free samples?
A: Yes, we offer free sample while customer need pay for the freight charge.
Q: Which Payment way is workable?
A: Irrevocable L/C, Cash, PayPal, Credit card and T/T money transfers.
B: 30% T/T deposit in advance, 70% balance before shipment after presentation of ready cargo.
C: L/C ( Irrevocable LC at sight: Order amount over USD10,000)
Q: What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q: How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your needs while keeping material costs in mind.
Q: Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q: Can you supply different color materials?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in case of an order.
Q: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, VITON(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
